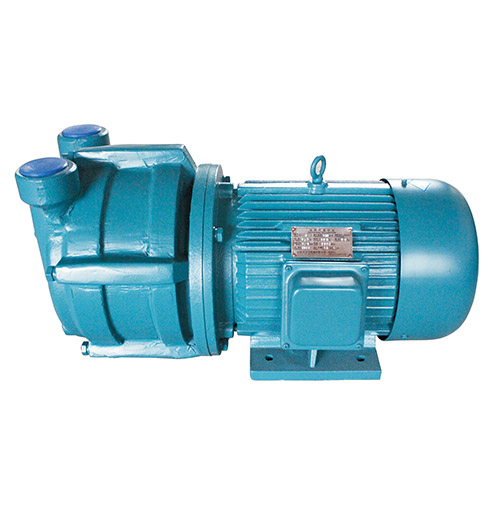

SZ series water ring vacuum pump
product

SZ series water ring vacuum pump

HLJX specializing in the production of SZ series single-stage water ring vacuum pump is the introduction of foreign advanced technology based on, has been optimized to improve the development,, with a clear and efficient, energy-saving features, the vacuum up to 96 %, can replace imported two-stage pump. It impeller eccentrically mounted relative to the pump casing, the impeller produces the eccentric rotation of the impeller of the water ring, filled with water in the middle of the blade, continuous reciprocating motion of periodically changing the volume of the middle blade, at a fixed intake port and an exhaust with the corresponding intake port, the completion of the suction, compression and discharge process.
Download PDF
Inquiry
Add to basket
Description
Specification

This series of single-stage water ring vacuum pump is a horizontal straight-linking, mainly by the pump cover, intake and exhaust plate, pump casing, impeller, connecting seat and mechanical seals and other components, the pump body vital parts made ​​of copper alloy and stainless steel, the main casting surface corrosion treatment, Vol solve the problem of rust inside the pump. Has a beautiful shape, compact structure, excellent performance, easy maintenance and so on.

Application: This series of single-stage water ring vacuum pump is mainly used for pumping, conveying air and other gases. Particularly suitable for pumping large amounts of water vapor-containing gas is suitable for pumping a certain corrosive gases. For example, the chemical industry, vacuum distillation, drying; vacuum degassing plastics industry, forming; leather industry vacuum dehydration. Use it as a pre-stage Roots vacuum pump, Roots vacuum can greatly improve the use of ranges.

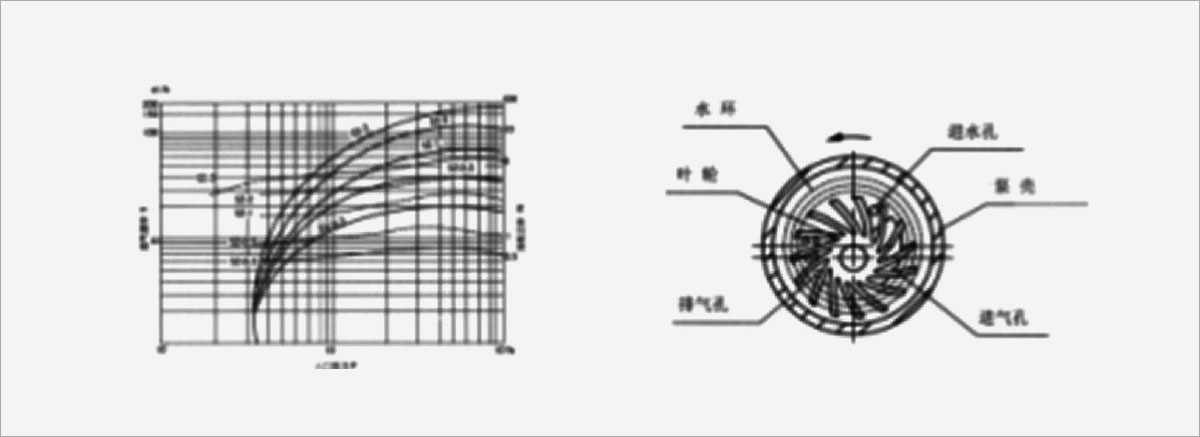

Performance curve

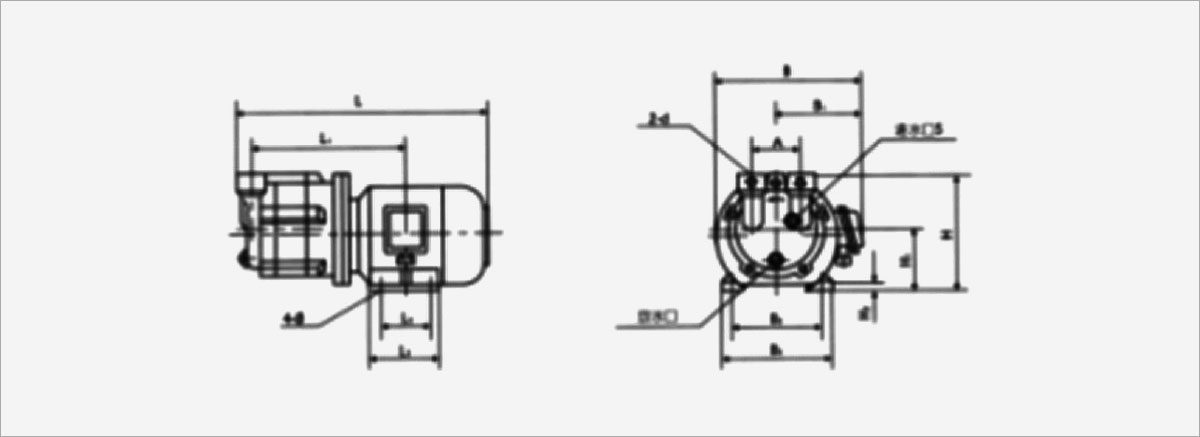

Dimensions
