FEATURE：

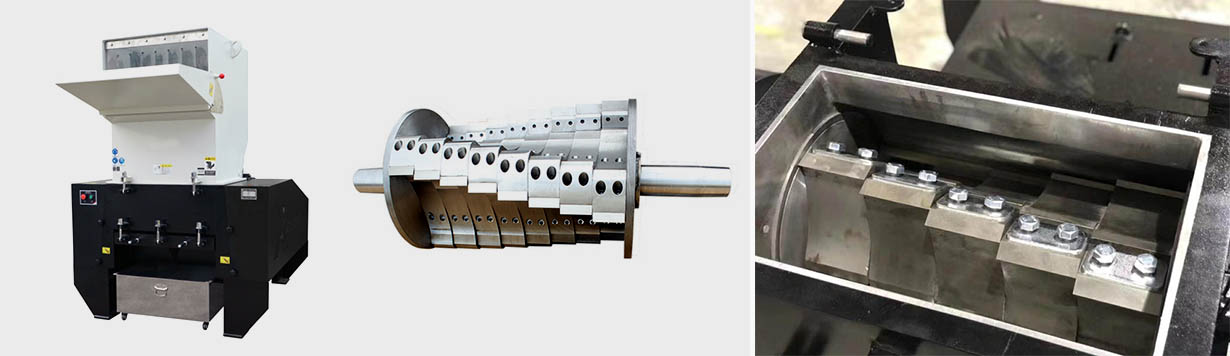

The front blade is used to increase the cutting angle and improve the cutting efficiency. The shape of the formed particles is uniform and the powder is less. Flat knife is suitable for crushing ordinary sheet, pipe, profile and packaging materials.
The feeding hopper has double-layer sound insulation design on four sides, the inner layer is made of stainless steel, and the outer layer is strengthened, which has good mute effect.
The cooling system is equipped in the box of the machine above 30HP, which can release the heat energy generated by friction in time and improve the efficiency and service life of the machine.
The appearance design is simple and practical, and the European CE safety design standard is introduced.
The tool is made of high strength alloy tool steel with good toughness and wear resistance. The extension length of the blade is adjustable.
High quality bearings are used for durability.
Casters are installed below 10HP, and shockproof feet are selected for above 15HP.
The feeding hopper above 15HP is equipped with auxiliary spring, and the feeding hopper and screen frame above 50HP are equipped with air cylinder or hydraulic system.
It can be customized for crushing PA66 / PA6 + 20% - 50% GF material, which can greatly improve the service life of the machine.
|
MODEL |
HL-GP400 |
HL-GP500 |
HL-GP600 |
HL-GD800 |
HL-GD1000 |
|
POWER |
7.5KW |
11KW |
15KW |
22KW |
37KW |
|
10HP |
15HP |
20HP |
30HP |
50HP |
|
|
ROTATE SPEED （R/MIN） |
620 |
620 |
620 |
580 |
550 |
|
QUANTITY OF FIXED BLADES |
2 |
2 |
4 |
4 |
4 |
|
QUANTITY OF ROTATING BLADES |
12 |
15 |
18 |
24 |
30 |
|
CRUSHING CAPACITY（KG/H） |
400-600 |
500-700 |
600-800 |
800-1200 |
1000-1500 |
|
FEEDING INTEL SIZE（MM） |
420*220 |
520*260 |
600*240 |
800*500 |
1000*600 |
|
MESH SIZE(MM) |
10 |
10 |
10/12 |
12 |
12 |
|
DIMENSIONS (MM) |
1060*880*1320 |
1150*1000*1450 |
1200*1080*1680 |
1650*1400*2150 |
1750*1600*2280 |
|
WEIGHT(KG) |
450 |
620 |
680 |
850 |
1180 |
HLJX Plastic Machinery Co., Ltd. is well-known China Powerful crusher manufacturers and custom Powerful crusher suppliers . Since 1980, we have been working in the field of plastic industry. Our core products include parts, accessories, auxiliary systems and peripheral equipment of plastic machinery. Our products are also widely used in shipbuilding, food processing, energy and chemical industry, intelligent manufacturing and other industrial fields.
As a leading Custom Powerful crusher manufacturers, our main products include slow-speed granulators,low-speed granulators, beside-the-press granulators,screenless granulators,online recycling,powerful crusher,mold temperature controllers, industrial chillers, robots, fluid connectors, pumps, valves, vacuum suction machine, dryer, vacuum exhaust system, screw core temperature control device, flashback arrestors, oil cooler, custom Powerful crusher, etc.
