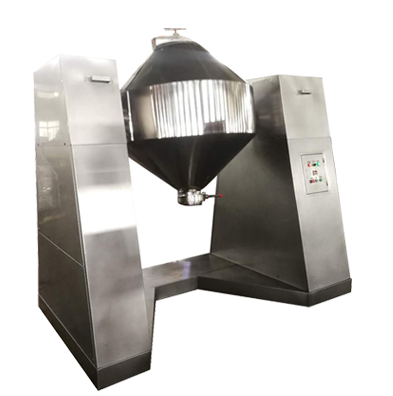

Double cone mixer

Double cone mixer is a mixing equipment that mixes various powders and materials evenly by rotating tank. It is a powder or granular materials through the vacuum conveying or artificial feeding into the double cone container, with the container constantly rotating. With the continuous rotation of the container, the materials in the container to carry out complex impact movement, to achieve uniform mixing of mechanical equipment.

By the motor, reducer through the gear drive mixing tank rotation, work will be prepared to add a variety of powders to the mixer tank, through the tank's rotation, so that the material by its gravity and centrifugal force repeatedly polymerization and separation to achieve uniform mixing, mixed materials by its own weight by the discharge port discharged.

Download PDF

Inquiry

Add to basket

Description

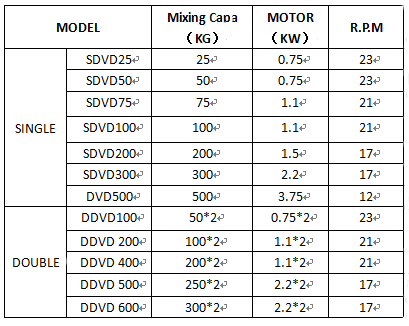

Specification

Features:
1, Mixed evenly, no material residue.
2, Adopting gravity diffusion principle mixing, small pressure feed to the material, will not produce shear crushing to the material.
3, Simple operation, easy to clean, suitable for G.M.P food, pharmaceutical companies.
4, It is suitable for crushing with different specific gravity or mixing with other additives.
5, Using internal and external rotary mixing, high uniformity.
6, The mixing barrel can be tilted at any angle, which is convenient for discharging and cleaning.
7, Automatic timing device can be set from 0 to 60 minutes to stop automatically.
8, the use of stainless steel butterfly valve discharge, effectively inhibit dust leakage flying phenomenon, effectively eliminate pollution and waste.
9, the barrel is made of stainless steel, inside and outside the wall are polished, the mixing process of the material without pollution, small power consumption, easy to clean.
10, the machine's stirring effect on the chemical reaction of the material has a better matching effect.
